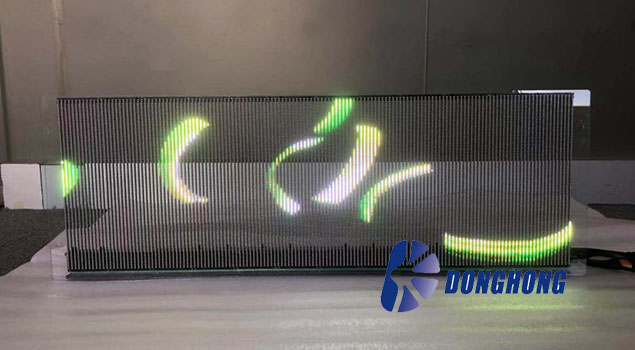

Vehical mounted Transparent LED Display

*2.6x5.2mm/3.9x7.8mm pixel pitch *750mmx250mm/875mmx291mm/750mmx291mm panel *Used on car, bus or other vehicles

Features

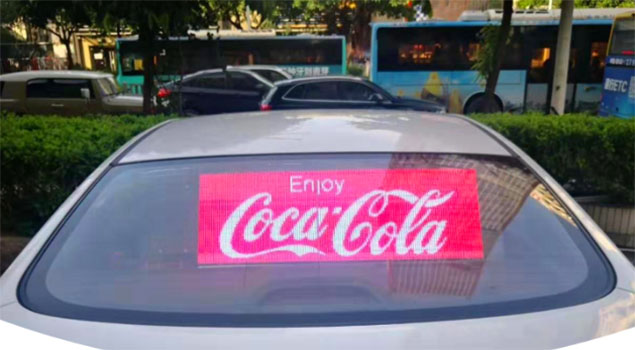

LED transparent screens are widely used in various transportation vehicles such as cars, taxis, buses, and advertising platforms at stations to display information effectively.

The features of displaying vehicle information and LED transparent screens are as follows:

When the LED transparent screen plays content, only the pixels in the picture emit light, while the pixels without a picture do not emit light. This method of playback can reduce light pollution and energy consumption. It also aligns with the energy-saving theme advocated in China, responding to the call for energy conservation and emission reduction.

LED transparent screens are also easy to assemble and debug. Modules can be quickly and easily fixed on brackets by hand, or customized installation is possible. The groove design behind the module makes connections more convenient.

LED transparent screens are lightweight and thin, making them easy to transport. Including all structure and power supplies, the weight per square meter is only half that of traditional screens. The lightweight and thin characteristics not only make the screen look compact but also save transportation costs.

LED transparent screens are also easy to maintain and update. When an LED light is faulty, there is no need to replace the entire module, only a set of lights needs to be replaced. Maintenance can be done indoors with high efficiency and low cost.





                                      Product specifications


Model SVC2656M SVC2656L SVC3978M
Pixel pitch 2.6*5.2mm 2.6*5.2mm 3.9*7.8mm
LED type SMD1921 SMD1921 SMD1921
Module size 250mm*62.5mm 291mm*62.5mm 291mm*125mm
Module resolution 96(W)*12(H) 112(W)*12 (H) 74(W)*16 (H)
Screen size 750mm*250mm 875mm*291mm 750mm*291mm
Screen resolution 144(W)*96(H) 168(W)*112(H) 96 (W)*72(H)
Transparency rate >55% >55% >55%
Scan mode 1/16 1/16 1/16
Brightness ≥4500cd/㎡ ≥4500cd/㎡ ≥5500 cd/㎡
Refresh frequency 2880Hz 2880Hz 2880Hz
Gray level 14bit 14bit 14bit
Color temperature 5500K-9300K 5500K-9300K 5500K-9300K
Average power consumption <75W/PC <95W/PC <75W/PC
Max. power consumption <130W/PC <175W/㎡ <130W/PC
Optimum viewing distance 2.5M~50M 3M~50M 3M~50M
Viewing angle (H)160°/(V)160° (H)160°/(V)160° H)160°/(V)160°
Power supply mode DC12V/15A DC12V/16A DC12V/16A
Working voltage DC4.2V-5V DC4.2V-6V DC4.2V-6V
Environment temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Relative humidity 10%-95% 10%-96% 10%-96%
Panel thickness 5mm 5mm 5mm
Maintenance method Front maintenance Front maintenance Front maintenance
LED lifetime >100,000 hours >100,000 hours >100,000 hours
Protection level IP20 IP20 IP20




Energy-efficient

    Reduces light pollution and energy consumption.

Easy assembly

    Quick fixing, customizable installation, convenient connections.

Lightweight

    Easy transport, half the weight of traditional screens.
