P10 Holographic LED Screen

P10 Holographic LED Screen Pixel Pitch: 10mm Module Size: 250*1200mm/Customized Module Resolution: 25*120

Features


The holographic LED display is an innovative fusion of LED technology and holographic imaging, capable of producing lifelike 3D visuals that appear to float in mid-air. Its standout features include:

  1. Immersive 3D holographic imagery – By precisely controlling LED arrays, the screen generates captivating, depth-rich holographic visuals that seem to hover in space, offering a truly dreamlike viewing experience from multiple perspectives.

  2. See-through transparency – When the LEDs are inactive, the screen becomes virtually transparent, allowing viewers to see the background clearly. This enables holographic content to blend seamlessly with the real-world environment, enhancing spatial integration without blocking the view.

  3. Exceptional brightness and contrast – The display delivers vivid, high-contrast imagery that remains striking and clear even under bright ambient lighting, ensuring that holographic content always pops with visual impact.

  4. Broad viewing angles – Designed for wide-angle visibility, the screen maintains consistent image quality across a range of positions and perspectives, making it suitable for large audiences and dynamic viewing scenarios



                                      Product specifications


Item Technical Parameter
Physical Pitch 10mm
Pixel Configuration 1R1G1B
Module Size 1000*250mm/1500*250mm
LED Lamp Packaging Type SMD Lamp & Driver Integrated
Pixel Density (dots/㎡) 10000
Pixel Type Full Color
Module Pixels 100*25/150*25
Scanning Method Static
Driver IC Constant Current Driver
Power Supply Voltage 5V
Operating Temperature -30℃ - +50℃
Screen Body Material Profile Aluminum
Screen Body Color Black
Screen Body Size Customized
Screen Body Resolution Customized
Number of Modules According to On-site Size
White Balance Brightness 800-5000cd/㎡
Transmittance 65%
Horizontal Viewing Angle 140 degree
Vertical Viewing Angle 140 degree
Flatness <1mm
Module Gap <1mm
Cabinet Weight 4.5KG
Maximum Power/㎡ 800W
Average Power/㎡ 400W
Frame Rate ≥60Hz/s
Refresh Frequency 3840HZ
Gray Level 14 bits
Input Signal RF, S-video, RGB, RGBHV, YUV, YC&Com, etc
Mean Time Between Failures (MTBF) >5000 hours
Service Life >100000 hours


Advantages


1. Powerful visual appeal: The unique visual effects of holographic LED display screens possess powerful visual appeal, making them highly suitable for applications in marketing, advertising, and entertainment industries, among others.

2. Interactivity and engagement: Holographic LED display screens can interact with audiences through gesture recognition or touch interaction technology, greatly enhancing user engagement.

3. Versatility: These display screens can be widely used in various settings, including retail stores, exhibition halls, museums, and various large-scale event venues. They can showcase products and other information with unique visual effects.

4. Scalability: The size of holographic LED display screens can be adjusted to accommodate different spatial requirements, ranging from small installations to large display screens.

Holographic LED display screens offer an innovative and engaging way to present content, with their ability to create mesmerizing 3D holographic images and videos while providing transparency, high brightness, wide viewing angles, and interactive features.



Application


The holographic LED display screen finds its primary applications in commercial advertising, product and information showcasing, and high-impact visual experience requirements in entertainment activities.

1. Advertising and Marketing

Holographic LED screens are commonly used in advertising and marketing activities to create attention-grabbing immersive experiences. By displaying visually impactful product or brand imagery through holographic LED screens, they can attract more attention and effectively promote products while enhancing brand awareness.

2. Retail and Exhibitions

In retail environments and large exhibition venues, holographic LED screens are often utilized to showcase products, demonstrate functionality, or provide interactive experiences. Creating virtual product displays, 3D models, or animations through holographic LED screens can significantly enhance promotional effects.

3. Entertainment Performances and Large-Scale Events

These screens are frequently employed in live entertainment performances and large-scale events to project performers' holographic images, creating a 3D visual effect that immerses the audience in a more realistic visual experience, thereby enhancing the overall impact and atmosphere of entertainment performances and events.

4. Museums and Galleries

Museums and art galleries also make use of holographic LED screens to display holographic 3D images, creating more experiential interactive exhibition effects, typically featuring educational or storytelling content. The unique effects of holographic 3D images can bring a sense of reality to historical events, artifacts, or artworks, integrating them into real-life experiences.

5. Education and Training

Holographic LED screens are commonly utilized in educational and training institutions, particularly in fields such as medical training, architecture, or engineering, to showcase 3D models and virtual environments, providing students with enhanced visual experiences.

6. Hospitality and Tourism Industry

In the hospitality and tourism industry, holographic LED displays are used to showcase captivating multimedia information, such as highlights of tourist destinations, route information, and virtual tours of attractions, to attract more foot traffic and increase tourism and accommodation revenue.

7. Product Launches and Demonstrations

Holographic LED screens are employed in product launches and demonstrations to create unforgettable and impactful visual experiences. They can display 3D product renderings, animations, or interactive content to help convey the functionality and advantages of products or concepts.

These are some of the most common applications of holographic LED screens. Due to their versatility and powerful visual impact, holographic LED display screens can be widely applied in various settings that require high visual impact to enhance the on-site effects of activities.

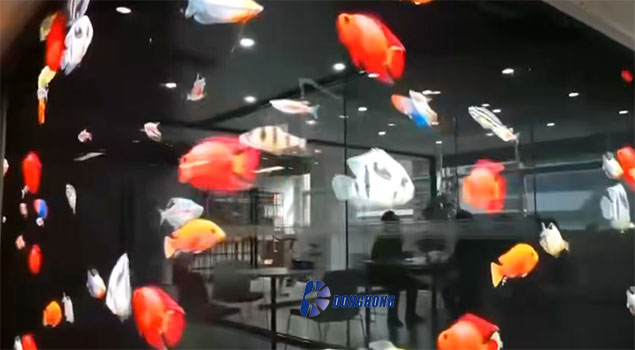

Immersive 3D holographic imagery

    LED arrays create captivating three-dimensional holographic images with depth and perspective.

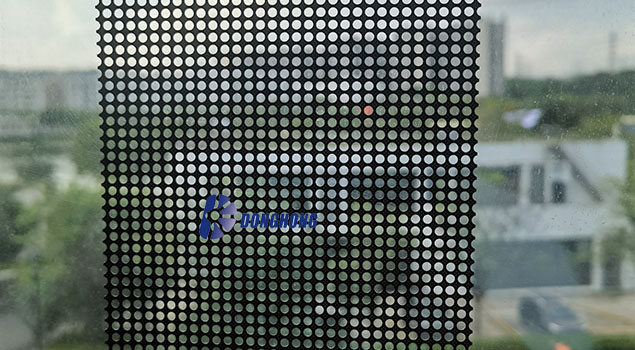

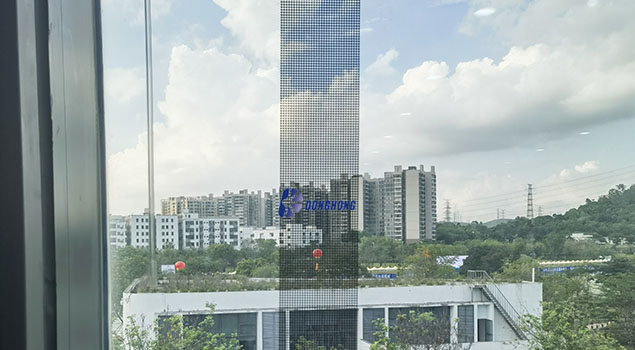

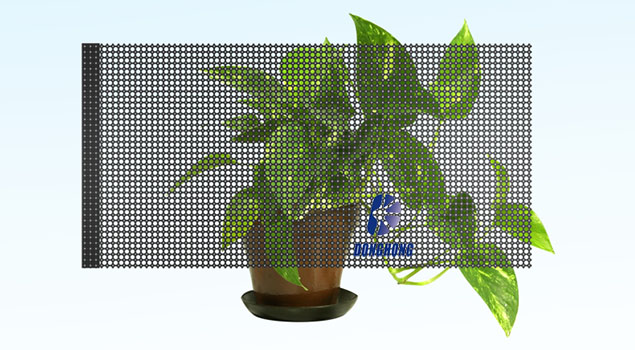

High Transparency

    When LEDs are off, the screen remains see-through, seamlessly integrating holographic content into surroundings.

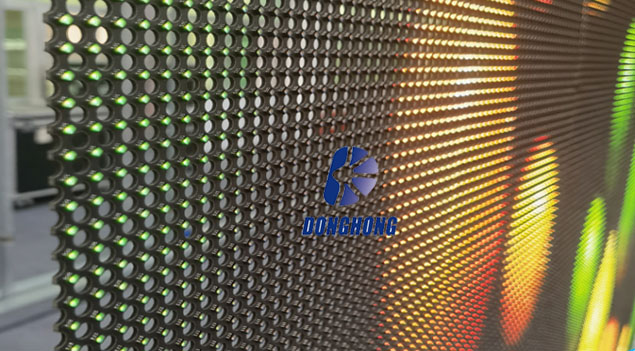

High brightness and contrast

    Ensures vivid, visually appealing holographic content even in well-lit environments.
